CR1020 Multi-functional electronic fuel injection test bench

CR1020 Electronic Control Integrated Test Bench

Main Introduction

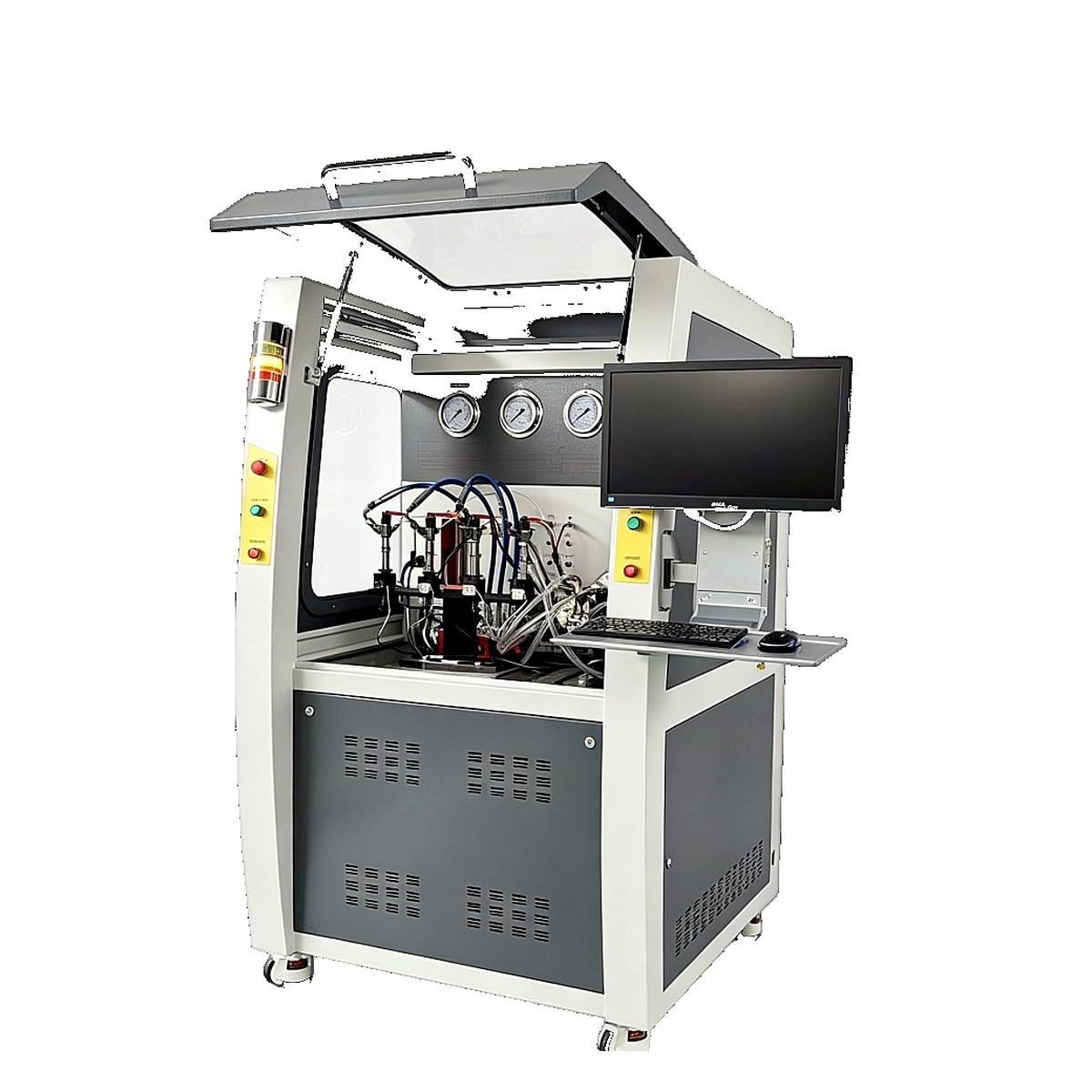

CR1020 High Voltage Common Rail Electronic Control Comprehensive Test Bench This test bench supports testing thousands of types of electronically controlled fuel injectors, high-pressure common rail pumps and electronic control units. It covers injectors from BOSCH, DELPHI, Denso, Siemens, Caterpillar, Cummins (Eastcom, Fukang) and other brands. Applicable test items: standard common rail injectors, injector compensation coding, common rail high-pressure pumps, HPO pumps. Optional test modules: pump-nozzle injectors & HEUI medium-pressure fuel injectors.

1. Custom Fixture for 4 Injectors

Special injector fixture enables simultaneous testing of 4 common rail injectors. It delivers reliable performance with simple and quick installation.

2. Universal Fixture

Equipped with universal clamps to fit various electronically controlled common rail injectors. Matched with special wiring harnesses, dedicated oil supply and return connectors. It features strong versatility, easy operation and fast clamping.

3. The New Cam Box

The upgraded cam box allows fast and convenient testing of electronically controlled unit pumps and pump-nozzle injectors, ensuring more accurate and reliable test data.

4. Common Rail Pump Test

For electronically controlled high-pressure common rail pump testing. The main motor drive shaft maintains ultra-high coaxiality with the common rail pump, enabling stable test operation and lower noise.

5. High-pressure Quick Connector

The machine adopts high-pressure quick connectors to simplify testing procedures and boost maintenance efficiency.

6. High Definition Industrial Grade Screen

Self-developed control system for common rail injectors. Functions include remote control, remote technical support, free software upgrade and WIFI connectivity.

7. Tri-color Alarm Indicator Light

Yellow light ON: Device standby

Green light ON: Equipment running

Red light ON: Emergency stop activated

8. HEUI Injector Test

Fitted with newly-designed special testing and mounting fixtures for HEUI injectors. The test procedure is simple, precise and stable.

Technical Parameter Table

Product Images
